GSM TRI BAND REPEATER 900 + 1800 + 800 MHz (Voice + 4G / LTE internet) - 2000 m2
€1,599.00
€1,799.00
In stock
SKU
RF LED20-L
- Suitable for all European 900 + 1800 + 800 MHz providers
- Powerful all-in-one repeater for houses and buildings
- Supplied with antennas, coaxial cables and accessories
- Easy to install. Ready for use
- Free of interference. CE! approved
- Low energy consumption
- Indoor coverage up to max. 2000 m2
- Art.nr. RF LED20-L
- Price excl. VAT

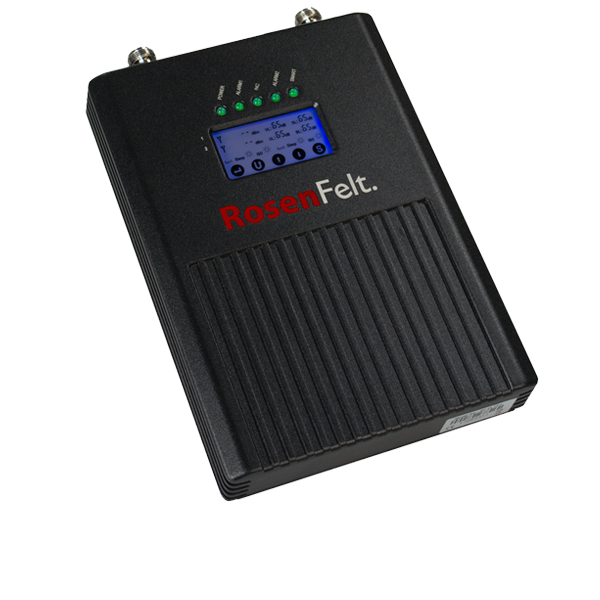

This powerful Tri-Band GSM repeater kit has been specifically assembled for use in offices, business units, houses and in spaces such as cellars and garages. The GSM repeater is delivered ready to use and comes with all necessary accessories. The Rosenfelt RF LED20-L Tri-Band repeater kit receives the 900 + 1800 + 2100 MHz and 3G (UMTS Internet) mobile network signal by using the external antenna. All incoming signal frequencies are transmitted through the coaxial cable to the GSM repeater (also known as phone amplifier or GSM booster) which amplifies the signal and sends it through the internal antenna to your mobile phone. The repeater has a maximum indoor coverage of approximately 2000 m2. The Rosenfelt RF LED20-L guarantees an interference free signal at home or in the office.
The GSM repeater kit is easy to install and comes complete with:
- Clear instruction manual
- External antenna
- Tri-Band GSM repeater suitable for European GSM networks + 3 G
- 10 meters coaxial cable + connectors
- Internal antenna
After installing the repeater, you will experience straightaway how wonderful it is to have an optimal mobile signal indoors again.
Note
1. Every internal antenna has a maximum coverage of 100 up to 300 m2, regardless of the range and power of the repeater.
2. You always need a splitter + extra coaxial cable when you want to install a second internal antenna.
3. Use one internal antenna per room under normal circumstances.
| Specifications | Suitable for GSM 900+1800+2100 MHZ + 3G Network |
|---|---|
| Coverage area | up to max. 2000 m2 |
| Gain Up | 65 dB (uplink 790 - 825 // 880 - 915 // 1710 - 1785 MHz) |
| Gain Down | 65 dB (downlink 830 - 865 // 925 - 960 // 1805 - 1880) |
| Output power | 20 dBm |
| Main Power | AC 100 ~ 240 V, 50/60 Hz, DC Adapter 12V 5A |
| Dimensions | 240 x 170 x 35 mm |
| Wavelength MHz | 800 MHz / 900 MHz / 1800 MHz |
