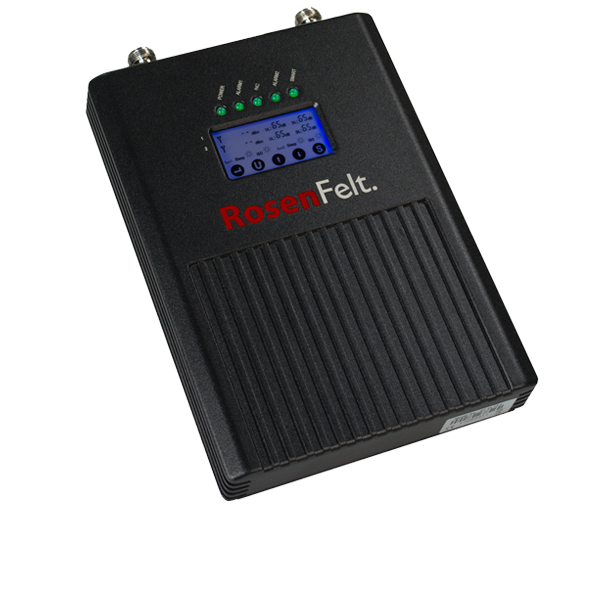

(Rosenfelt RF ED10-L) REPEATER 900-1800 MHz

This dual band repeater kit has been specifically assembled for use in offices, business units, houses and in spaces such as cellars and garages. The repeater is delivered ready to use and comes with all necessary accessories. The Rosenfelt RF ED10-L repeater kit receives the 900 + 1800 MHz mobile network signal by using the external antenna. The signal is transmitted through the coaxial cable to the repeater (also known as phone amplifier or GSM booster) which amplifies the signal and sends it through the internal antenna to your mobile phone. This 900 + 1800 MHz dual band GSM repeater comes with a practical screw-on internal antenna. The repeater has a maximum indoor coverage of approximately 300 sqm. The Rosenfelt RF ED10-L guarantees an interference free signal at home or in the office.

The repeater is easy to install and comes complete with:

• Clear instruction manual
• External antenna (7dBi)
• Dual band repeater 900 + 1800 Mhz suitable for all GSM networks
• 10 meter coaxial cable + connectors
• Internal antenna (5dBi)

After installing the repeater, you will experience straightaway how wonderful it is to have an optimal mobile signal indoors again.

Note
1. Any internal antenna has a maximum coverage of 100 up to 300 sqm, regardless of the range and power of the repeater.
2. You always need a splitter + extra coaxial cable when you want to install a second internal antenna.
3. Use one internal antenna per room under normal circumstances.

What should I do if I have a weak to moderate outside signal?
When assembling the sets, we have assumed that you have good mobile coverage outside your house or premises. If your mobile coverage is weak to moderate, we advise you to upgrade the outside antenna (to a higher dBi value) to guarantee good coverage. The standard antenna will then be replaced by the upgrade and will directly be added to the order amount.
